Hydraulic 12 Cubic Meters Concrete Pan Mixer

FOB Reference Price:Get Latest Price
US $4,000-15,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Henan, China (Mainland)
Brand Name:
Bona
Model Number:
JZC3
Motor Power:
10.55kw
Mixing Power:
5.5kw
Charging Capacity:
560L
Reclaiming capacity:
350L
Speed of Mixing Drum:
14r/min
Water Supply Mode:
water pump
Working Cycle Period:
60S
Discharge Way:
Automatic
Outline Dimension:
2766mm*2140mm*3000mm
After-sales Service Provided:
Engineers available to service machinery overseas
Product name:
tractor concrete pan mixer
Capacity:
10-14m3/h
Mixing motor power:
5.5kw
Hoisting motor power:
4.5kw
Pump motor power:
0.55kw
Max.aggregate size:
60mm
Hopper lifting speed:
8m/min
Rotating speed:
14r/min
Weight:
1950kg
Dimensions:
2766x2140x3000
SupplyAbility
SupplyAbility:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
tractor concrete pan mixer need :nude packing of the host equipment; wear parts are packed in wooden cases; or customized;
Port
Qingdao,Tianjin,Guangzhou,Dalian,Shanghai, Ningbo, Shenzhen,Xiamen,Lian yunguang and other main ports
Lead Time :
Shipped in 7 days after payment

Hydraulic 12 Cubic Meters Concrete Pan Mixer

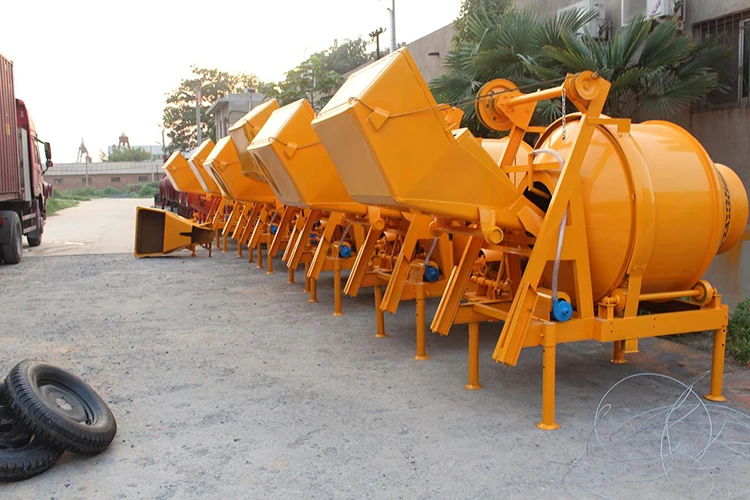

Bona JZC concrete mixer is a self-falling and movable concrete mixing machine, discharging with the double wimble rotating reversely. It could be used for mixing plastic and damp-dry rigid concrete. This mixer drum will mix the material by rotating positively, and discharges by rotating reversely.

tractor concrete pan mixer include JZC250,350,500 and 750 four types , among them JZC750 as stationary type ,apart from using as stand-alone ,it can combine with PLD batching plant to a simple mixing station . other types are all as movable type .Tapered reverse discharging mixer is mainly constituted by mixing drum , feeding. This series machine designed reasonable ,used convenient , mix flexible , economical and practical  ,it can combine with PLD800 batching plant to a simple mixing station . other types are all as movable type .

Our senior engineers to ensure quality and durability.

  • Low noise, smooth working, Which is in accordance with GB/T9142-2000 to made.
  • Competitive price, good quality. The structure is reasonable and it has high efficiency
  • Long working life. It has higher mixing quality, attractive appearance, moved easily.
  • ISO9001 approved.

Item

JZC350

JZC500

JZC750

Charging Volume (L)

560

800

1200

Discharging Volume (L)

350

500

750

Capacity (m3/h)

10~14

18~20

20~22

Rotating Speed (r/min)

14

14

13

Mixing Motor Power

5.5kw

11kw

15kw

Lifting Motor Power

4.5kw

5.5kw

7.5kw

Water Pump Power

0.55kw

0.75kw

1.1kw

Lifting Speed (m/min)

8

8

8

Total Weight (KG)

1950

3100

4200

Max. Aggregate Size(mm)

60

60-80

60-80

Dimension (L*W*H) (mm)

2766x2140x3000

5226x2200x5460

6116x2056x6060

Product Description

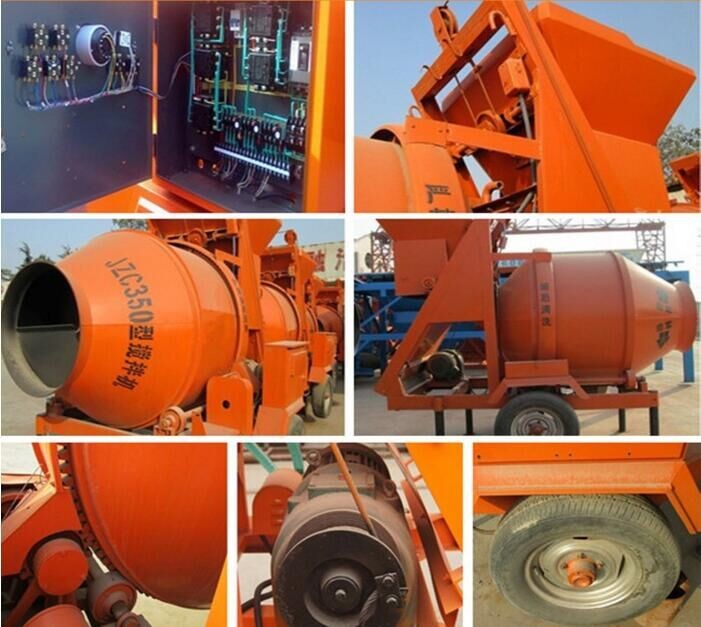

Product details

It can mix dry concrete, plasticity concrete, wet concrete, light aggregate concrete and various mortars.

There are high manganese wear-resisting cast steel lining boards and mixing blades inside the mixer, which is durable and convenient to replace.  Combining with   different PLD concrete batching machines, various kinds of concrete batching plant can be formed.

tractor concrete pan mixer applies to various large & medium scale prefricated factory, construction sites, roads, bridges, airports and tunnels, etc.

Our other products

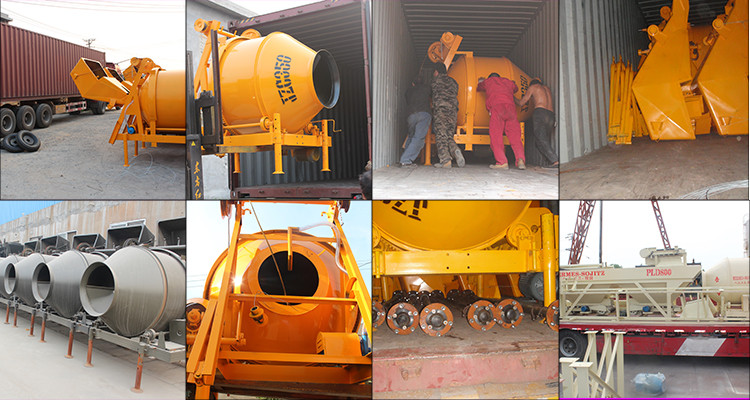

Packaging & Shipping

Package terms: Easily damaged part use sturdy wooden case and cartons packing of tractor concrete pan mixer .
                           Other parts are in nude, 20GP, 40 HQ standard exporting package, or according to the buyer's request.
Delivery time:  10-15 workdays (in stock); 25-35 workdays (out of stock).
Means of transportation:
                          1. By sea, Main port: Qingdao,Tianjin,Shanghai,Dalian,Quanzhou,Guangzhou,Shenzhen port.
                          2. By rail, Inland port: At mohe port, Fuyuan port, Suifenhe port, Alataw Pass, Pingxiang port.

Company Information

Established in 2005, Zhengzhou Bona Enterprise Co., Ltd is one of the major Construction and Engineering Machinery Manufacturers and Exporters in Henan.We come from the largest manufacturing base of Construction Machine in Zhengzhou, China, and we have built firm relationships with our suppliers of materials & components. Thus we can reduce the cost of our products and ensure the benefit of our customers.As an ISO 9001:2000 certified company, we insist on “Innovating, Perfect, Quality and Service”, and earn a good reputation in the worldwide market.....Read more

Our Services

1. Provide Turn-Key Solutions, especially technical consultation service,
2. Provide Installation, debug, and provide complete technical training.
3. Guarantee: 15 months in common using condition (except damageable and artificial destruction)

4. Repair: 1) We provide technical guidance all life.
                2) Within the guarantee period, we will offer spare parts free of charge
If spare part of tractor concrete pan mixer Installation is broken and the problems caused by our quality. we will repair in free of charge.
