Quick Details

  • Condition: New
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: Bona
  • Model Number: JZC750
  • Motor Power: 23.6kw
  • Mixing Power: 15kw
  • Charging Capacity: 1200L
  • Reclaiming capacity: 750L
  • Speed of Mixing Drum: 13r/min
  • Water Supply Mode: water pump
  • Working Cycle Period: 60S
  • Discharge Way: Automatic
  • Outline Dimension: 6116x2056x6060mm
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Product name: hand gasoline concrete mixer with robin engine
  • Capacity: 20-22m3/h
  • Mixing motor power: 15kw
  • Hoisting motor power: 7.5kw
  • Pump motor power: 1.1kw
  • Max.aggregate size: 60-80mm
  • Hopper lifting speed: 8m/min
  • Rotating speed: 13r/min
  • Weight: 4200kg
  • Dimensions: 6116x2056x6060mm

Packaging & Delivery

Packaging Details hand gasoline concrete mixer with robin engine: Export standard container-20GP or 40GP, 40HQ,FR container in bulk, the spare parts in wooden or iron case according to the size and weight.
Delivery Time Machine in stock: any time; Normal: 7-15 days; OEM: 10-15 days

Hand gasoline concrete mixer with robin engine

Product overview
Product Description

1. hand gasoline concrete mixer with robin engines introduction

1.hand gasoline concrete mixer with robin engine can mix

the plastic and half-dry hard concrete, fluid concrete and light aggregate concrete.

2. It is applicable to the common construction working site, concrete mixer truck, road, bridge and each kind of precast product factory.

3. Manul or Hydraulic pressure discharge concrete mixer models, automatic feeding system and work independently or used as facility for concrete mixer plant.

2. hand gasoline concrete mixer with robin engines parameter

Item

JZC350

JZC500

JZC750

Charging Volume (L)

560

800

1200

Discharging Volume (L)

350

500

750

Capacity (m3/h)

10~14

18~20

20~22

Rotating Speed (r/min)

14

14

13

Mixing Motor Power

5.5kw

11kw

15kw

Lifting Motor Power

4.5kw

5.5kw

7.5kw

Water Pump Power

0.55kw

0.75kw

1.1kw

Lifting Speed (m/min)

8

8

8

Total Weight (KG)

1950

3100

4200

Max. Aggregate Size(mm)

60

60-80

60-80

Dimension (L×W×H) mm

2766x2140x3000

5226x2200x5460

6116x2056x6060



Product advantages

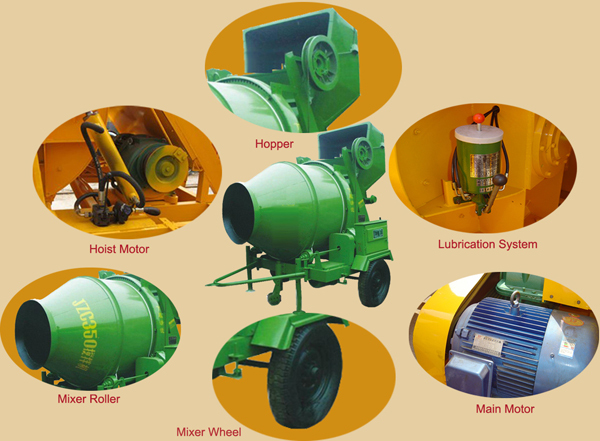

3. hand gasoline concrete mixer with robin engines details



4. hand gasoline concrete mixer with robin engines features

1.electric engine or diesel type optional for power supply and reasonable structure

design,easy to operate and maintain.

2.Mixing drum is driven through gear ring. Low noise, Low energy consumption, no

slip in rainy weather, easily operate.
3.JZC series hand gasoline concrete mixer with robin engines

are portable concrete mixers with 2 tyres, low weight, easy to move as site changes.

4.Assemble lifting bucket, which mouth is lower than ground, be conveniently for

aggregate loading and feeding.
5.It is used to turn cement, thick and thin aggregate, such as broken stone, pebble,

sand, and water into concrete mixture.
6.Electric&hydraulic optional for hand gasoline concrete mixer with robin engines.

Certifications



5. hand gasoline concrete mixer with robin engines certification

Packaging & Shipping



6. hand gasoline concrete mixer with robin engines package

Customer Visit



7.customers visit

Company Information



8.Our factory

9.Other construction products
