Quick Details

  • Condition: New
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: BONA
  • Model Number: JDC500
  • Motor Power: 18.5kw
  • Mixing Power: 18.5kw
  • Charging Capacity: 560L
  • Reclaiming capacity: 350L
  • Speed of Mixing Drum: 27.6r/min
  • Water Supply Mode: Water Pump System
  • Working Cycle Period: 60s
  • Discharge Way: Pneumatic
  • Outline Dimension: 2600mm*2600mm*3100mm
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Product Name: concrete mixing machine
  • Type: Fixed
  • Mixing system: single horizontal shaft
  • Capacity: 25-30m3/h
  • Max.aggregate sizes: 60/80mm
  • Mixing time: 30s
  • Mixing blade speed: 27.6r/min
  • Total Weight: 4000kg
  • Colour: As customer require
  • Motor: Electrical

Packaging & Delivery

Packaging Details concrete mixing machine package:20GP,40HQ standard exporting package and some fragile concrete mixer parts should keep upright and in a dry place.
Delivery Time within 15 days after receiving the payment

Specification:

concrete mixing machine

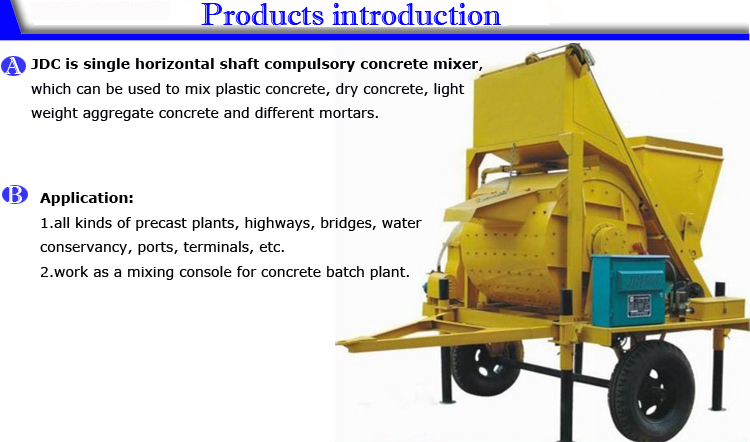

1. Single horizontal shaft compulsory concrete mixer
2. Hydraulic or Gear driven for discharging
3. Electric engine for power supply

Single Horizontal Shaft Small Foam Concrete Mixing Machine



Product Description

concrete mixing machine parameters

Model

Concrete Mixing Machine

JDC350(gear-driven)

JDC500(gear-driven)

JDY350(hydraulic)

JDY500(hydraulic)

Discharging capacity

350L

500L

350L

500L

Charging capacity

560L

800L

560L

800L

Max. aggregate size

60/40mm

80/60mm

60/40mm

80/60mm

Productivity

17.5m3/h

25-30m3/h

18-21 m3/h

25-30 m3/h

Mixing speed

27.6r/min

27.6r/min

28 r/min

24r/min

Mixing time

30s

30s

30s

30s

Motors power

15kw

18.5kw

19.55kw

24.75kw

Total weight

3700kg

4000kg

3700kg

4000kg

Dimension (mm)

2600*2600*3100

2820*2900*3260

2600*2600*3100

2820*2900*3260

concrete mixing machine advantages:

1.single horizontal shaft compulsory concrete mixer

2.Gear-driven or hydraulic for choice

3.Lifting motor for loading hopper

4.Worm gear box drive mixer for discharging system, fast and completely

5.Work independently or work as mixing console for concrete batch plant.



certification

Packaging & Shipping

concrete mixing machine packing and shipping:

1.Delivery time: 15 days after receipt of your deposit.

2.Payment terms: 20% T/T in advance, the left is paid (by T/T) before delivery.

3.Package: nude packing in container.

Company Information

 Established in 2005, Zhengzhou Bona Enterprise Co., Ltd. is one of the major construction and engineering machinery

manufacturer and exporter in Henan, Our main products are concrete batching plants, concrete mixer machineries, tower

cranes, road rollers, wheel loaders, forklifts, farm tractors, etc.Products are exported to America, Australia, Africa and

South Asia, mainly to Mongolia, Uzbekistan, Kazakhstan, Congo, Nigeria, Singapore, Ghana, Russia, Chile, Philippines,

Kenya, Armenia, Algeria Libya,etc.As a professional exporter,read more......
