Best Quality Capacity 35m3/h Concrete Batching Plant

FOB Reference Price:Get Latest Price
US $10,000-100,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Power Type:
Electric
Place of Origin:
Henan, China (Mainland)
Brand Name:
Bona
Model Number:
HZS35
Power(W):
90kw
Dimension(L*W*H):
15000*8000*12000 mm
Weight:
25T
Certification:
CE ISO
Warranty:
One Year
After-sales Service Provided:
Engineers available to service machinery overseas
Product name:
35m3/h Concrete Batching Plant
Capacity:
35 m3/h
Max. Aggregate Size:
80/60mm
Aggregate feeder type:
Hopper
Mixing system:
Twin-shaft Concrete Mixer
Concrete mixer model:
JS750
Mixing cycle:
75s
Aggregate batching machine model:
PLD1200
Control system:
Central Control
Application:
Large and medium building works
Supply Ability
Supply Ability:
500 Set/Sets per Year Best Quality Capacity 35m3/h Concrete Batching Plant
Packaging & Delivery
Packaging Details
Best Quality 35m3/h Concrete Batching Plant.20GP, 40 HQ standard exporting package, or according to the buyer's request. Easily damaged part use sturdy wooden case and cartons packing
Port
Qingdao, Shanghai, Ningbo, Manzhouli, Alashankou, Qinhuangdao, Tianjin,Huangpu, Zhanjiang, Lianyungang, Yantai, Nantong, etc
Lead Time :
Shipped in 15 days after payment

   Best Quality Capacity 35m3/h Concrete Batching Plant

Product overview

.jpg

Product description

The introduction of our 35m3/h concrete batching plant

Bona HZS series concrete batching plant belongs to compulsory and efficiency equipment, it includes JS concrete mixer, PLD batching machine, cement silo and control system. It can produce various kinds of concrete including quaking concrete and hard concrete, with high produce efficiency. It is widely used in large and medium scale building works, road and bridge works, concrete products prefabrication plants.It is an ideal equipment to produce commercial concrete.

The features of our 35m3/h concrete batching plant

1 "double composite spiral band" host using iron-chromium alloy wear-resistant materials, its shape and surface are with high shock resistance mechanical strength, good wear-resisting property, its center is with good toughness! Proper working life is 50,000 pots, a substantial increase in product life!
2. The whole plant uses automatic control systems, Siemens PLC, Schneider Electric components, computers and printing integration, simple operation, easy to debug.
3. Pneumatic system is with Taiwan Fusheng well-known air compressor, providing sufficient air supply for the entire concrete mixing plant.
4. Weighing system adopts international famous brands, weighing accuracy and sensitivity to ensure the quality of concrete.
5. Using section structure, unit modulation, fast installation and debugging and moving is very convenient.

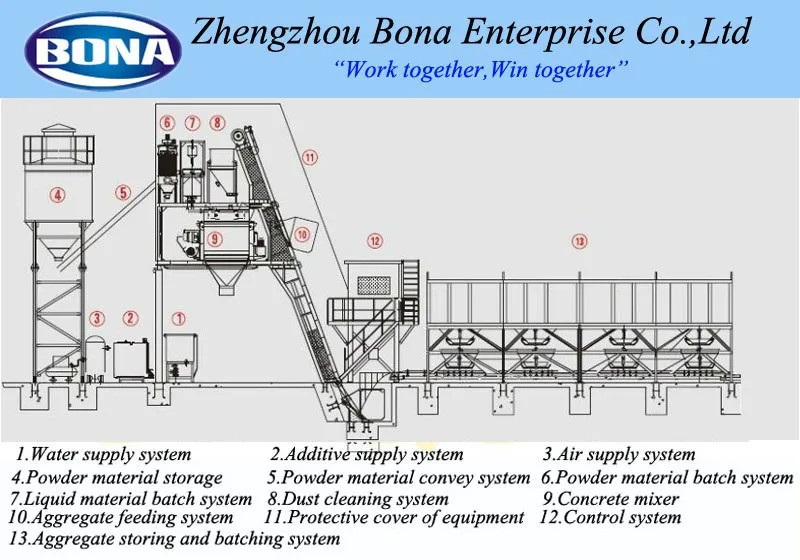

Product detail show

.jpg



The parameters of our 35m3/h concrete batching plant



Item

HZS25

HZS35

HZS50

HZS60

HZS75

HZS90

HZS120

HZS150

Capacity

25m3/h

35m3/h

50m3/h

60m3/h

75m3/h

90m³/h

120m3/h

150m3/h

Discharging volume

500L

750L

1000L

1000L

1500L

1500L

2000L

3000L

Charging volume

800L

1200L

1600L

1500L

2400L

2250L

3200L

4800L

Max. mixing size

80/60mm

80/60mm

80/60mm

100/80mm

80/60mm

100/80mm

100/80mm

80/60mm

Mixing cycle

70s

75s

72s

60s

72s

60s

60s



Aggregate batching machine model

PLD800

PLD1200

PLD1600

PLD2400/PLD1600

PLD2400

PLD2400

PLD3200

PLD4800

Aggregate scale hopper

800L

1200L

1600L

2400L/1600L

2400L

2400L

3200L

4800L

Aggregate feeding to mixer by

Hopper

Hopper

Hopper

Belt conveyor

Bucket(Skip hopper)

Belt conveyor

Belt conveyor

Belt conveyor

Control system Type

Central control

Central control

Central control

Computer auto-control

Computer auto-control

Computer auto-control

Computer auto-control

Computer auto-control

Packing and Shipping

Our Best Quality Capacity 35m3/h Concrete Batching Plant have 12 months warranty,and our engineers are available for services overseas,and the packing and shipping will use 20GP, 40 HQ standard exporting package, or according to the buyer's request.


Contact us

.jpg

               We welcome you contact us anytime.
