Quick Details

  • Condition: New
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: Bona
  • Model Number: JZM500
  • Motor Power: 17.25kw
  • Mixing Power: 11kw
  • Charging Capacity: 800L
  • Reclaiming capacity: 500L
  • Speed of Mixing Drum: 14r/min
  • Water Supply Mode: water pump
  • Working Cycle Period: 60S
  • Discharge Way: Automatic
  • Outline Dimension: 5230x2300x5450mm
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Product name: concrete mixer machine price in uganda
  • Productivity (m3/h): 18~20
  • Max. Aggregate Size (mm): 60
  • Lifting Motor Power: 5.5kw
  • Water Pump Power: 0.75kw
  • Lifting Speed (m/min): 18
  • Total Weight (KG): 3800
  • Max. Dragging Speed (km/h): 15
  • Discharging Height (mm): 1500
  • Dimension (LxWxH) mm: 5230x2300x5450

Packaging & Delivery

Packaging Details concrete mixer machine price in uganda: Export standard container-20GP or 40GP, 40HQ,FR container in bulk, the spare parts in wooden or iron case according to the size and weight.
Delivery Time Shipped in 7 days after payment

Construction Equipments Types Concrete Mixer Machine Price In Uganda



 JZM series concrete mixer is a gravity type of double-conic reversing drum comcrete mixer ,which usually used in construction site , road , bridge engineering ,Small and medium sized concrete factory. When it stir fixed ,Make the feeder was flush with the ground ,so that Feed is convenient ,great ruduce labor intensity .It is cylinder gluing machine .

concrete mixer machine price in uganda  is mainly constituted by mixing drum , feeding mechanism ,drive system ,wateter system ,electrical control system and etc...

This series machine designed reasonable ,used convenient , mix flexible , economical and practical . ,it can combine with PLD800 batching plant to a simple mixing station . other types are all as movable type .



  • JZM series concrete mixer has higher mixing efficiency and good quality
  • Lower noice ,and especially used in the construction around the residential area .
  • JZM series concrete mixer ,which is made by good material ,and painted the paint from abroad.
  • The mixing performence is strong , the mixing efficientcy is higher ,and it has easy operation .

Item

JZM350

JZM500

JZM750

Charging Volume (L)

560

800

1200

Discharging Volume (L)

350

500

750

Productivity (m3/h)

10~14

18~20

20~22

Max. Aggregate Size (mm)

60

60

80

Rotating Speed (r/min)

14

14

13

Mixing Motor

Model

Y132S-4-B5

Y132S-4-B5

Y132M-4-B5

Power (KW)

5.5

2×5.5

2×7.5

Lifting Motor

Model

YEZ112M-4

YEZ132S-4

YEZ132S-4

Power (KW)

4.5

5.5

7.5

Water Pump

Model

40DWB8-12A

Y801-2

Y802-2

Power (KW)

0.55

0.75

1.1

Lifting Speed (m/min)

18

18

18

Total Weight (KG)

2050

3800

4300

Max. Dragging Speed (km/h)

15

15

/

Discharging Height (mm)

800

1500

1800

Dimension (L×W×H) mm

2800×2140×3000

5230×2300×5450

6120×20

 {iamge1}

Product Description



Product details

concrete mixer machine price in uganda is a gravity type of double-conic reversing drum concrete mixer, the drum transit by gear or friction wheel, the drum rotates clockwise during discharging. It is portable and movable. The mixer can mix plasticity and damp half-dry concrete. The JZM series concrete mixer can be used in mixing dry hardness, plastic light aggregate concrete with ash, lime mortar widely used in building sites, road, bridges and concrete component factories.

Our other products

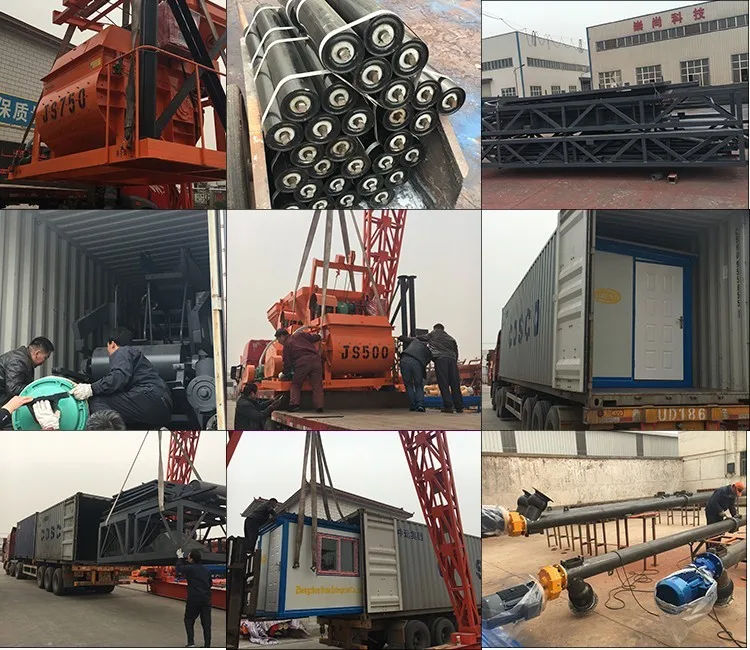

Packaging & Shipping

Package terms: Easily damaged part use sturdy wooden case and cartons packing of concrete mixer machine price in uganda.
                           Other parts are in nude, 20GP, 40 HQ standard exporting package, or according to the buyer's request.
Delivery time:  10-15 workdays (in stock); 25-35 workdays (out of stock).
Means of transportation:
                          1. By sea, Main port: Qingdao,Tianjin,Shanghai,Dalian,Quanzhou,Guangzhou,Shenzhen port.
                          2. By rail, Inland port: At mohe port, Fuyuan port, Suifenhe port, Alataw Pass, Pingxiang port.

Company Information

Established in 2005, Zhengzhou Bona Enterprise Co., Ltd is one of the major Construction and Engineering Machinery Manufacturers and Exporters in Henan.We come from the largest manufacturing base of Construction Machine in Zhengzhou, China, and we have built firm relationships with our suppliers of materials & components. Thus we can reduce the cost of our products and ensure the benefit of our customers.As an ISO 9001:2000 certified company, we insist on “Innovating, Perfect, Quality and Service”, and earn a good reputation in the worldwide market.....Read more

1. Provide Turn-Key Solutions, especially technical consultation service,
2. Provide Installation, debug, and provide complete technical training.
3. Guarantee: 15 months in common using condition (except damageable and artificial destruction)

4. Repair: 1) We provide technical guidance all life.
                2) Within the guarantee period, we will offer spare parts free of charge
If spare part of Concrete Batching Plant Installation is broken and the problems caused by our quality. we will repair in free of charge.
