Quick Details

  • Condition: New
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: Bona
  • Model Number: JN1000
  • Motor Power: 3kw
  • Mixing Power: 37kw
  • Charging Capacity: 1500L
  • Reclaiming capacity: 1000L
  • Speed of Mixing Drum: 20r/min
  • Water Supply Mode: Hydraulic Water Pump
  • Working Cycle Period: 60s
  • Discharge Way: Auto
  • Outline Dimension: 2891x2891x2891mm
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Product name: counter-current planetary concrete mixer
  • Total weight: 6000kg
  • Type: rotary planetary concrete mixer
  • Skipper capacity: 1740
  • Skipper speed: 0.25m/s
  • Planet/Paddle: 2/4
  • Lifting power: 11kw
  • Certificate: CE ISO9001
  • Color: Write,Grey or as your required
  • Application: Construction Industry

Packaging & Delivery

Packaging Details counter-current planetary concrete mixer.20GP, 40 HQ standard exporting package, or according to the buyer's request. Easily damaged part use sturdy wooden case and cartons packing
Delivery Time Shipped in 7 days after payment

Machinery industrial manufacturer counter-current planetary concrete mixer

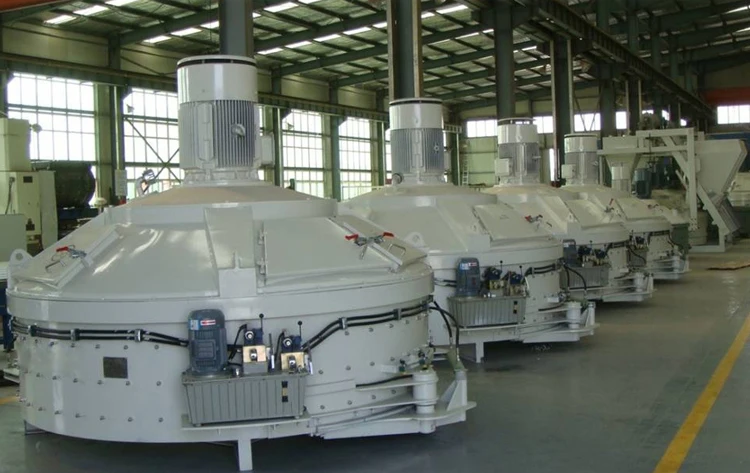

JN planetary concrete mixers are also named as planetary forced concrete mixers whose mixing blades rotation can constantly cover entire mixing drum zone, will obtain high mixing concrete productivity with different kinds and specific gravity of aggregates. JN planetary concrete mixers are appropriate for mixing high quality concrete including commercial concrete, precast concrete, foam concrete, color concrete and light concrete, and it can be used in glass, ceramic industry.



Senior engineers to ensure quality and durability

  • Conveniently for assemble and maintain equipment
  • No leakage problem
  • Blades with long working time
  • Rotary planetary mixing blades with high-efficiency mixing quality
  • High-sensitive security switches
  • Strong uniformity and good econimic



ModelJN330JN500JN750JN1000JN1500JN2000JN2500JN3000
Discharging Volume (L)33050075010001500200025003000
Charging Volume (L)500750112515002250300037504500
Charging Weight (KG)8001200180024003600480060007200
Diameter of Mixing Drum (mm)15401900219624962796310034003400
Mixing Power (KW)1518.53037557590110
Discharging Power (KW)2.22.22.233444
Weight (KG)1700200035006000700085001050011000
Bucket Capacity (L)5808701300174026103480//
Bucket Capacity (KG)87013051950261039155220//
Lifting Speed (m/s)0.250.250.250.250.250.25//
Lifting Power (KW)447.5111518.5//





Product description

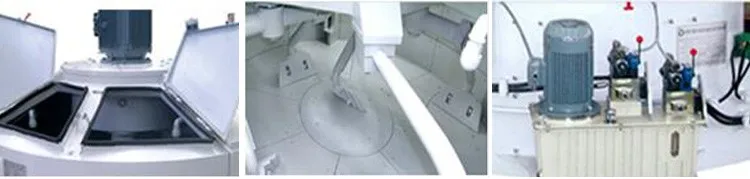

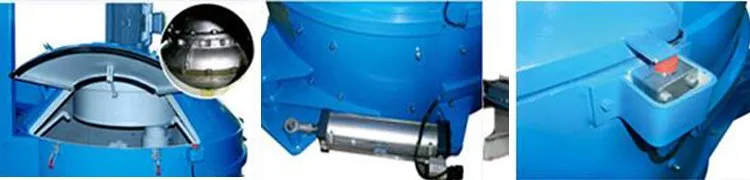

Gearing system:As a part of concrete mixer,such as reducer,bearing and oil-seal,are original imported,reliable in transmission.

Discharging device:The concrete discharging door can be opened by hydraulic or pneumatic,convenient and high efficiency.

Security device:High sensitive security switches are used in the maintaining door if customers need.this design is as your required and safe in working.

Maintaining door: No concrete leakage for special transmission system installed at the top of mixing tank,the design of maintaing door do that.

Mixing device:Adopt rotary planetary mixing blades,be known for complex trajectories,and with long working life.

Hydraulic power unit:With hydraulic power,will be more efficient when the aggregate discharging.atomatically and good economic benefits.

Related Products

Packing and shipping

Package terms: Easily damaged part in counter-current planetary concrete mixer use sturdy wooden case and cartons packing.
                           Other parts are in nude, 20GP, 40 HQ standard exporting package, or according to the buyer's request.
Delivery time:  10-15 workdays (in stock); 25-35 workdays (out of stock).
Means of transportation:
                          1. By sea, Main port: Qingdao,Tianjin,Shanghai,Dalian,Quanzhou,Guangzhou,Shenzhen port.
                          2. By rail, Inland port: At mohe port, Fuyuan port, Suifenhe port, Alataw Pass, Pingxiang port.



Company information

Established in 2005, Zhengzhou Bona Enterprise Co., Ltd is one of the major Construction and Engineering Machinery Manufacturers and Exporters in Henan.We come from the largest manufacturing base of Construction Machine in Zhengzhou, China, and we have built firm relationships with our suppliers of materials & components. Thus we can reduce the cost of counter-current planetary concrete mixer and ensure the benefit of our customers.As an ISO 9001:2000 certified company, we insist on “Innovating, Perfect, Quality and Service”, and earn a good reputation in the worldwide market.....Read more

Our services

1. Provide Turn-Key Solutions, especially technical consultation service,
2. Provide Installation, debug, and provide complete technical training.
3. Guarantee: 15 months in common using condition (except damageable and artificial destruction)

4. Repair: 1) We provide technical guidance all life.
                2) Within the guarantee period, we will offer spare parts free of charge
If spare part of counter-current planetary concrete mixer is broken and the problems caused by our quality. we will repair in free of charge.
