HZS60 60m3/h concrete mixer plants,concrete mixing plants with best price

FOB Reference Price:Get Latest Price
US $38,000-99,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Power Type:
Electric
Place of Origin:
Henan, China (Mainland)
Brand Name:
Bona
Model Number:
HZS60
Power(W):
109kw
Dimension(L*W*H):
25000*10000*19400 mm
Weight:
50Ton
Certification:
ISO9001:2000 & CE
Warranty:
12 months
After-sales Service Provided:
Engineers available to service machinery overseas
Product name:
HZS60 60m3/h concrete mixer plants
Capacity (m3/h):
60m3/h
Concrete mixer volume:
1000L for mini concrete batching plant
Aggregate feeding type:
belt
Other name:
concrete mixer plants
Concrete mixer power:
2x18.5kw
Aggregate weighing range:
3000kg
Cement weighing range:
600kg
Discharging:
3900mm
Max.aggregate size:
60-80mm
Supply Ability
Supply Ability:
1000 Set/Sets per Year
Packaging & Delivery
Packaging Details
HZS60 60m3/h concrete mixer plants,concrete mixing plants with best price package:20GP,40HQ standard exporting package and some fragile concrete mixer parts should keep upright and in a dry place or as customer requirements.
Port
Qingdao,Tianjin,Guangzhou,Dalian,Shanghai,Ningbo,Shenzhen,Lianyuangang and other main ports.
Lead Time :
Shipped in 20 days after payment

HZS60 60m3/h concrete mixer plants,concrete mixing plants with best price

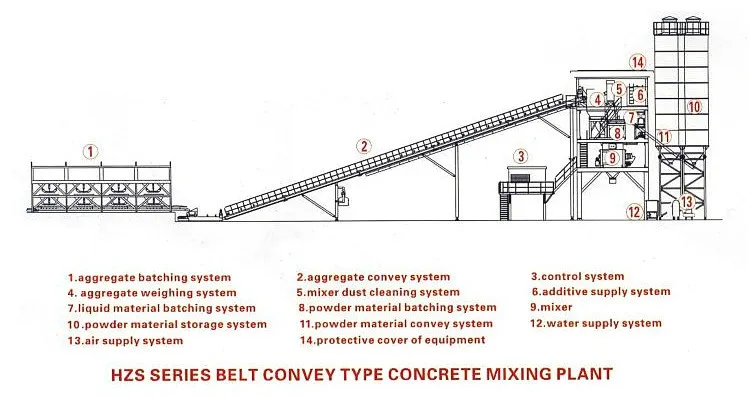

Bona HZS60 concrete mixing plants is mandatory and efficient equipment, which includes JS concrete mixers,PLD batching machine, cement silo, weighing systems and control systems. It can produce various kinds of concrete, including quaking concrete, hard concrete, with high production efficiency. It is widely used in large and medium sized construction site, road and bridge engineering, precast concrete products.it is an ideal equipment for the production of concrete products.


Our senior engineers to ensure quality and durability.

  • High Production Performance
  • High Quality and Precise Concrete Production (with Fully Automatic Computerized Control System)
  • Different Layout Options according to Customer Requirements
  • Possibility of Different Kinds of Concrete Production with Different Type of Mixers
  • Reliable Components (Siemens, Jotun, Pirelli, WAM, Farbo, Lincoln etc.)
  • Conformity with CE,ISO Standards
  • Easy Maintenance and Low Operating Cost

Model

HZS25

HZS35

HZS50

HZS60

HZS75

HZS90

HZS120

HZS150

Capacity

25m3/h

30m3/h

50m3/h

60m3/h

75m3/h

90m³/h

120m3/h

150m3/h

Discharging volume

500L

750L

1000L

1000L

1500L

1500L

2000L

3000L

Charging volume

800L

1200L

1600L

1500L

2400L

2250L

3200L

4800L

Max. mixing size

80/60mm

80/60mm

80/60mm

100/80mm

80/60mm

100/80mm

100/80mm

80/60mm

Mixing cycle

70s

75s

72s

60s

72s

60s

60s



Aggregate batching machine model

PLD800

PLD1200

PLD1600

PLD2400/PLD1600

PLD2400

PLD2400

PLD3200

PLD4800

Aggregate scale hopper

800L

1200L

1600L

2400L/1600L

2400L

2400L

3200L

4800L

Aggregate feeding to mixer by

Hopper

Hopper

Hopper

Belt conveyor

Bucket(Skip hopper)

Belt conveyor

Belt conveyor

Belt conveyor

Control system Type

Central control

Central control

Central control

Computer auto-control

Computer auto-control

Computer auto-control

Computer auto-control

Computer auto-control

Product description



Product details

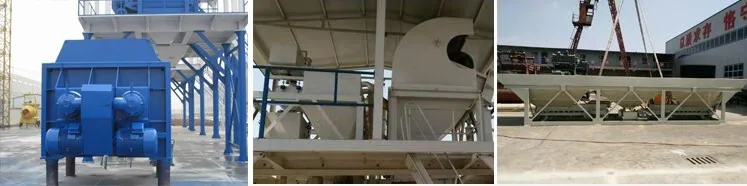

 Our concrete batching plant adopt JS series concrete mixer as main  engine.This kind of mixer is twin  shaft compulsory concrete  mixer,advanced production  technology to ensure the  clearance uniformity between  mixing blades and liners.

Our concrete batching plant has an accurate weighing system.This accurate weighting system includes water weighing,cement weighting,fly ash weighting.Its accurate let you complete your project perfect.

Our concrete batching plant use PLD batching machine.It is the sand batching device with loading machine or belt conveying machine feeding,it can be configured cumulative measuring method and independent measuring method according to the size of concrete plant.

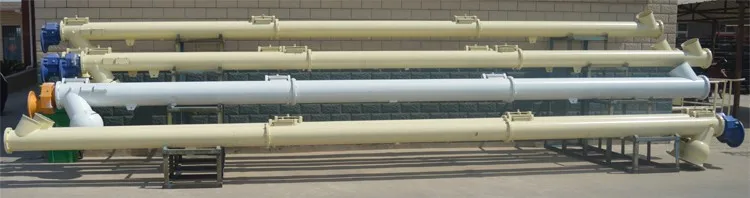

The Concrete-Mixing Plant For Sale for sale use LSY type screw conveyor,it adopt high quality steel pipe,double pitch paddles,high quality reduction gear box and optional universal ball joint.It specially apply for transporting power material from concrete bin to mixer in concrete mixer plants.

Related Products

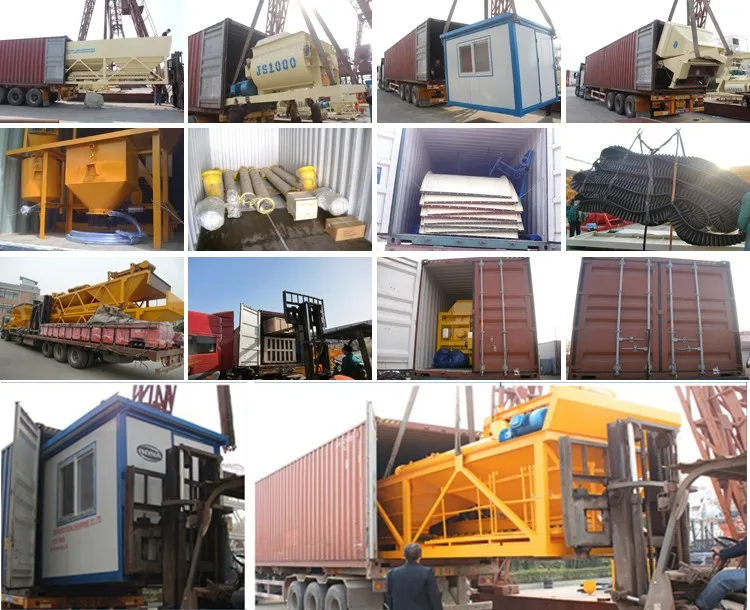

Packing and shipping


Package terms: Easily damaged part use sturdy wooden case and cartons packing.
                           Other parts are in nude, 20GP, 40 HQ standard exporting package, or according to the buyer's request.
Delivery time:  10-15 workdays (in stock); 25-35 workdays (out of stock).
Means of transportation:
                          1. By sea, Main port: Qingdao,Tianjin,Shanghai,Dalian,Quanzhou,Guangzhou,Shenzhen port.
                          2. By rail, Inland port: At mohe port, Fuyuan port, Suifenhe port, Alataw Pass, Pingxiang port.

Company information



Established in 2005,
Zhengzhou Bona Enterprise Co., Ltd is one of the major Construction and Engineering Machinery Manufacturers and Exporters in Henan.We come from the largest manufacturing base of Construction Machine in Zhengzhou, China, and we have built firm relationships with our suppliers of materials & components. Thus we can reduce the cost of our products and ensure the benefit of our customers.As an ISO 9001:2000 certified company, we insist on “Innovating, Perfect, Quality and Service”, and earn a good reputation in the worldwide market.....Read more


Our services

1. Provide Turn-Key Solutions, especially technical consultation service,
2. Provide Installation, debug, and provide complete technical training.
3. Guarantee: 15 months in common using condition (except damageable and artificial destruction)

4. Repair: 1) We provide technical guidance all life.
                2) Within the guarantee period, we will offer spare parts free of charge
If spare part of dry mortar batching plant is broken and the problems caused by our quality. we will repair in free of charge.
