Quick Details

  • Condition: New
  • Type: Hollow Block Making Machine
  • Brick Raw Material: Clay
  • Processing: Brick Production Line
  • Method: Vacuum Extruder
  • Automatic: Yes
  • Capacity: 11000-15000pcs/hour, 11000-15000pcs/hr
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: Bona
  • Model Number: JKY50/50-4.0
  • Voltage: 380V
  • Power: 55/132/15kw
  • Dimension(L*W*H): /
  • Certification: CE,ISO
  • Warranty: 12 Months
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Product name: Bona Tunnel Kiln Fully Automatic Fired Clay Brick Making Machine
  • Reamer Diamerter: 500mm
  • Extruding Pressure: ≤4.0(Mpa)
  • Forming Liquid Water Content: 14-16%
  • Max Vacuum degree: ≤-0.092(Mpa)
  • Application: clay brick making
  • Usage: Solid brick,hollow brick,load bearing perforated brick

Packaging & Delivery

Packaging Details China top sales good price auto clay brick making machine coimbatore package as standard terms
Delivery Time In 30 days after payment
Product Description

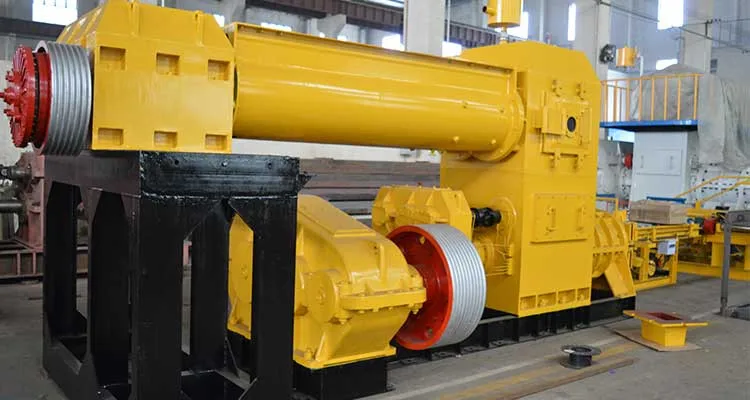

Bona Tunnel Kiln Fully Automatic Fired Clay Brick Making Machine

The clay interlocking hydraform brick making machine are advanced twin-stage vacuum extruder The blades of the reamer adopt he wear-resistant metallic material coating technology which makes its life 4-7 times longer than common reamer. The lead has the function of slight pressure delivery and high pressure extrusion which makes the machine save energy from 15-30%. They are applicable for the production of solid brick, load-bearing perforated brick, and high-rate hollow bricks with the materials of clay, coal gangue, shale, high-volume fly-ash, urban construction waste, gangue waste, inferior soil.

Main Features

1) Simple and compact structure, reasonable design, easy maintenance.

2) Good tightness, high vacuum, high pressure extrusion.

3) Strong applicability, lower energy consumption, high efficiency.

4) They are applicable for the production of solid brick, solid brick, load-bearing perforated brick, and high-rate hollow bricks with the materials of clay, coal gangue, shale, high-volume fly-ash, urban construction waste, inferior soil.

Related Products

Double Shaft Mixer

SJ series Double Shaft Mixer can mix, blend and homogenize the raw material with water adequately to enhance the plasticity of the raw material. It is a necessary equipment to deal with the raw material in the procession of sintering the bricks.


Automatic Strip Cutting Machine

The Strip Cutting Machine can cut the clay bar automatically to required length, and then send it to the Automatic Cutter.
It can make accurate length, vertically cut, smoothly delivery, adjust speed without damaging the bottom of the mud.

Blank Cutting Machine

This machine can cut the clay bar into brick pieces with required thickness.
High-intensity: with feature of large grade and firm structure, full thrust, so that it can cut the hard and soft mud bars, also double bars and big blocks upon the materials as shale, coal gangue, clay and so on.

High- speed roll crusher

It is the equipment for crushing and grinding the raw material. The rollers are made of the complex alloy which can reach to the hardness value of HRC60。 ~62。/HRC48。~50。After being quenched. Over the roller there is a material’s distributor which not only brings roller’s fragmentation effect into play but also improve the fineness and yield of crushed materials. And it can be solved from the phenomenon of the middle slot.

Hammer Crusher

This series of Hammer Crusher are our newest and crusher, which is developed with drawing lessons from many different crushers of domestic and market. They have lots of advantages with big reduction ratio, high efficiency, low wastage rate, low blocking rate, stable operation, easy maintenance, compact structure, low noise and less dust.

Hot Products

JKY75/75-4.0

Clay Brick Making Machine

JKB 60/60-3.0

Clay Brick Making Machine

JKB(SJ) 50/50-4.0

Clay Brick Making Machine

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* View our Factory.

After-Sales Service

* Engineers available to service machinery overseas.
* Process design, plant design and other technical services.
